U.S. Spec Web Slings — EEA, ESA & RES-A

Why a U.S. Spec Sling Is a Different Product

A European sling to EN 1492-1 and a U.S. spec sling to ASME B30.9 look alike and are not the same item. Three differences matter, and each one causes a real problem when it is missed:

• The safety factor. EN 1492-1 requires 7:1; ASME B30.9 and WSTDA-WS1 require 5:1. For the same webbing, the U.S. spec sling carries the higher working load — a 2 in two-ply polyester sling is 6,400 lb vertical, where the equivalent European sling would be de-rated for the larger factor. Buying on width and ply alone across the two standards gives the wrong number every time.
• The units. U.S. spec slings are rated in pounds and dimensioned in inches. If your lift plan, shackles and hardware are in pounds, converting a metric sling into that plan adds a rounding step where mistakes happen.
• The colour. There is no colour code. EN 1492-1 fixes eight colours to eight capacities; the U.S. system puts everything on the label and nothing on the colour. A blue U.S. sling is not an 8 t sling — read the label.

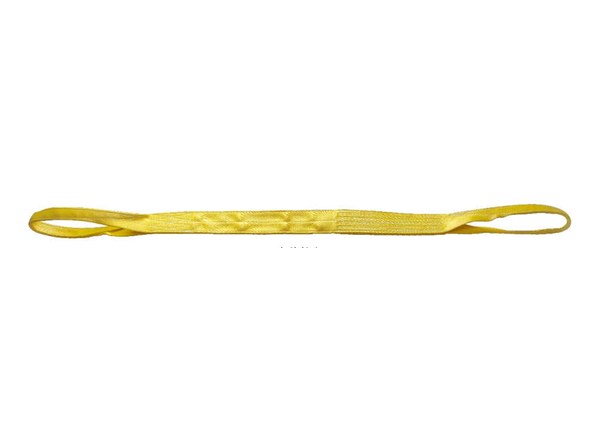

EEA — Eye and Eye Web Sling

A flat webbing sling with a reinforced eye at each end, the standard general-purpose sling in North American industry. Widths 1″ to 12″, one to four plies. The vertical figure is the headline rating; the choker and basket columns are what the same sling will carry when rigged that way.

Capacities in pounds. Effective length is quoted separately, measured between the bearing points of the two eyes.

The Basket Angle Column Is the One Buyers Skip

Notice that a basket hitch is not one number but four. A basket hitch at 30° gives you exactly the same capacity as a vertical lift; the doubling that most people expect only arrives as the legs come together. The 60° column is where the basket rating actually exceeds vertical — at 45° it is already down to about 1.45× vertical, and at 30° it is 1.0×.

Take EEA-2-2, a 2″ two-ply: 6,400 lb vertical, 5,000 lb choked, and 12,800 lb in a basket — but that 12,800 is the 90° figure. Rig that same sling as a basket with the legs spread to 60° and it is 11,100 lb; at 45° it is 9,000 lb; at 30° it is back to 6,400 lb. Same sling, same hitch type, half the capacity, decided entirely by how wide you spread the legs. This is why a U.S. spec sling is specified by angle and not just by hitch.

As the angle opens, the leg tension rises: the load in each leg is W ÷ (2 × cos α), where α is half the included angle between the legs. A wide, flat basket is the most punishing rigging there is.

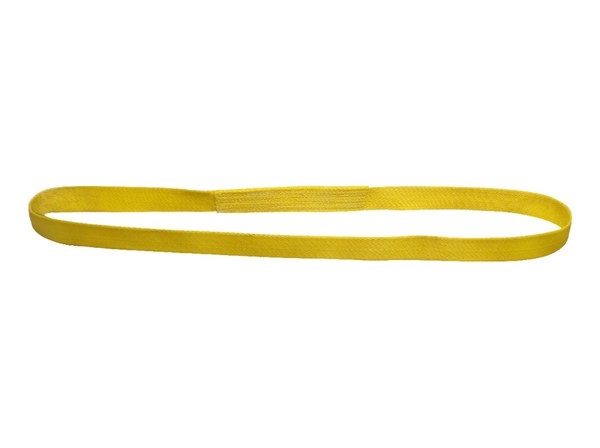

ESA — Endless Web Sling

A continuous loop of webbing with no eyes and no sewn joint at the ends. Because there is no fixed length, it can be wrapped around a load from any direction and re-positioned as the load settles, which makes it the usual choice for bundling, for loads with no lifting point, and for choke hitches where a sewn eye would sit awkwardly.

Capacities in pounds. Intermediate widths and ply combinations are produced to order — tell us the vertical capacity you need and we will confirm the nearest standard build.

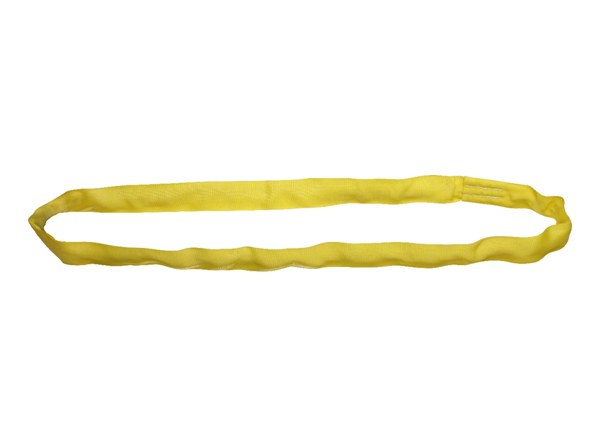

RES-A — Endless Round Sling

A continuous loop of polyester yarn inside a woven tubular cover. The load sits on the cover rather than on the load-bearing yarn, so a round sling conforms to awkward shapes where a flat sling would bridge and cut. The cover carries no load at all — it is there to protect the yarn — which is why a round sling with a torn cover is still structurally sound but must be taken out of service until the cover is checked along its whole length.

Capacities in pounds, to ASME B30.9 / WSTDA-WS1 at a 5:1 safety factor. Effective length is measured around the inside of the loop.

Reading a U.S. Spec Sling Label

WSTDA-WS1 requires the sling to carry a permanently attached tag or label. Because there is no colour code to fall back on, the label is the only thing standing between a rigger and the wrong capacity. Ours carry:

• Manufacturer's name and the sling type — so the construction is identifiable even if the sling is separated from its paperwork.
• Rated capacity, in pounds, vertical. The choker and basket figures are in the capacity table above, not on the tag, which is why the tag alone is never enough for a basket lift.
• Width, ply and effective length. A sling that has lost its label cannot be returned to service on a guess, even if the width is obvious.
• Material — polyester, nylon or both. It matters: nylon stretches further and absorbs shock better, polyester resists stretching and is more stable under a static load. They are not interchangeable in a lift plan.
• The standard, ASME B30.9 / WSTDA-WS1, and the safety factor.

How to Order

Five pieces of information turn a quote around in one reply:

• Construction — EEA eye and eye, ESA endless, or RES-A round.
• Width and ply, or the vertical capacity you need in pounds if you would rather we pick it.
• Effective length — between the eye bearing points for EEA, around the inside of the loop for ESA and RES-A.
• Hitch and basket angle, if the lift is a basket. This is the single most common cause of an undersized sling.
• Quantity, material (polyester or nylon), and whether you need the label printed with your own part number.

Frequently Asked Questions

Why is a U.S. spec sling rated higher than a European one of the same width?

Because the required safety factor is lower. EN 1492-1 asks for 7:1 and ASME B30.9 / WSTDA-WS1 asks for 5:1. The webbing is the same; the rating is the breaking strength divided by the factor, so the smaller factor yields the larger working load. A 2 in two-ply polyester sling is 6,400 lb to the U.S. standard.

Can I use a U.S. spec sling in Europe, or the other way round?

Physically yes, and there is no defect in either. The problem is the paperwork: lifting operations are governed by the standard named on the sling's tag, and a plan written to EN 1492-1 has to be re-rated if it is going to be executed with a sling marked 5:1. In practice, if your site works to EN standards, buy EN slings — the EN 1492-1 range covers the same capacities.

What is the difference between EEA and ESA?

EEA has a sewn eye at each end, so its length is fixed and you know exactly what you are getting at the millimetre. ESA is an unbroken loop, so it has no ends to position and can be wrapped from any direction — better around odd shapes and for bundling, but the effective length can drift as the loop shifts under load, so it is the weaker choice for a lift where geometry has to be exact.

Do you supply these with a proof test certificate?

Every sling is supplied with a certificate stating its rated capacity and the standard it was made to, and every batch is sample-tested to destruction. Web slings are not individually proof-loaded, because proof loading damages the webbing and the standard does not call for it. As with all slings, a sling that has been subjected to a destructive or proof test must not be returned to lifting service.

Polyester or nylon?

Polyester is the default: it resists stretching, holds its length under a static load, and resists weak acids. Nylon stretches further and absorbs shock better, which suits a lift with a dynamic component, but it loses strength when wet and is attacked by acids. Both are available, and each is marked on the label. Mixing the two in one multi-leg lift is a bad idea — the nylon leg will take a different share of the load as it stretches.

All Clever Lifting U.S. spec slings are made from 100% high-strength polyester yarn to ASME B30.9 and WSTDA-WS1 with a 5:1 safety factor. Widths 1″ to 12″, one to four plies, custom effective lengths and printed labels to order. See also our sling accessories for connectors and hooks rated to match.
